Chipset: |
Ralink 5572 chip |
|
Standards: |
IEEE 802.11n/b/g |
|
Wireless signal rates with automatic fallback: |
11n:Up to 150Mbps(Dynamic) 11a:Up to 150Mbps 11g:Up to 150Mbps(Dynamic) 11b:Up to 150Mbps(Dynamic) |
|
Frequency range: |
2.412~2.4835Ghz,5.180~5.805Ghz |
|
Wireless transmit power: | 2.4Ghz-18dBm,5.8Ghz-13dBm | |
Working channel: |
1~13/36~161 |
|
Receiver Sensitivity: |
130M:-68dBm@10%PER; 108M:-68dBm@10%PER; 54M:-68dBm@10%PER 11M:-85dBm@8%PER 6M:-88dBm@10%PER 1M:-90dBm@8%PER |
|
Work mode: |
Ad-Hoc Infrastructure soft AP mode |
|
Security: | 64/128 bit WEP | |
Support system: |
WPA/WPA2,WPA-PSK/WPA2-PSK(TKIP/AES) Windows XP/Win CE/Linux/Mac/VISTA/Win7/8 |
|

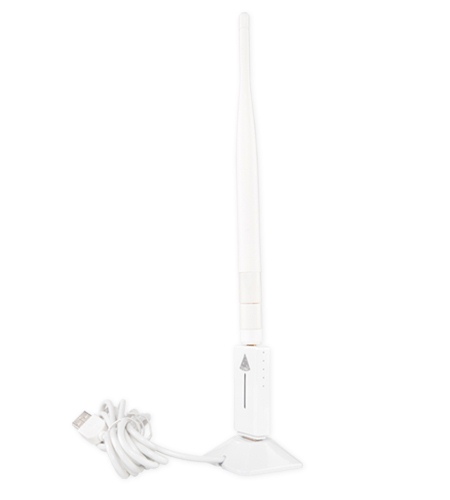

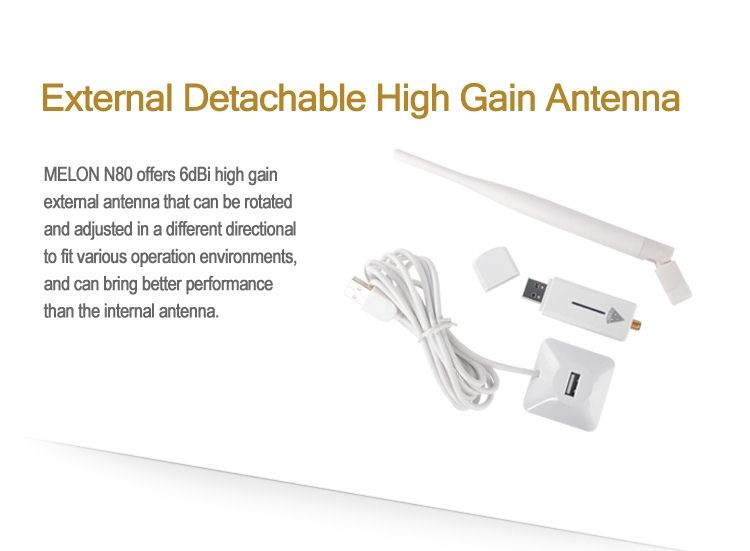

Antenna |
an extensible duat-band antenna(with SMA base) |
|
Inerface type: |
USB2.0 High-Speed connector |
|
Size(cm) |
21*15*4 |
|
Operating temperature: |
-0℃~40℃ |
|
Storage temperature: |
-40℃~70℃ |
|
Relative humidity: |
10%~90%RH,non condensation |
|
Storage humidity: | 5%~95%RH,non condensation |
